Rear bearing cap

Another piece that I didn't really need, but for $10, why not.

The original had steel particles (from the disintegrated bearings) embedded in the aluminum w/in the bearing bore.  Rather than pick 'em all out, and dress the nicks & burrs, I just bought the new one.

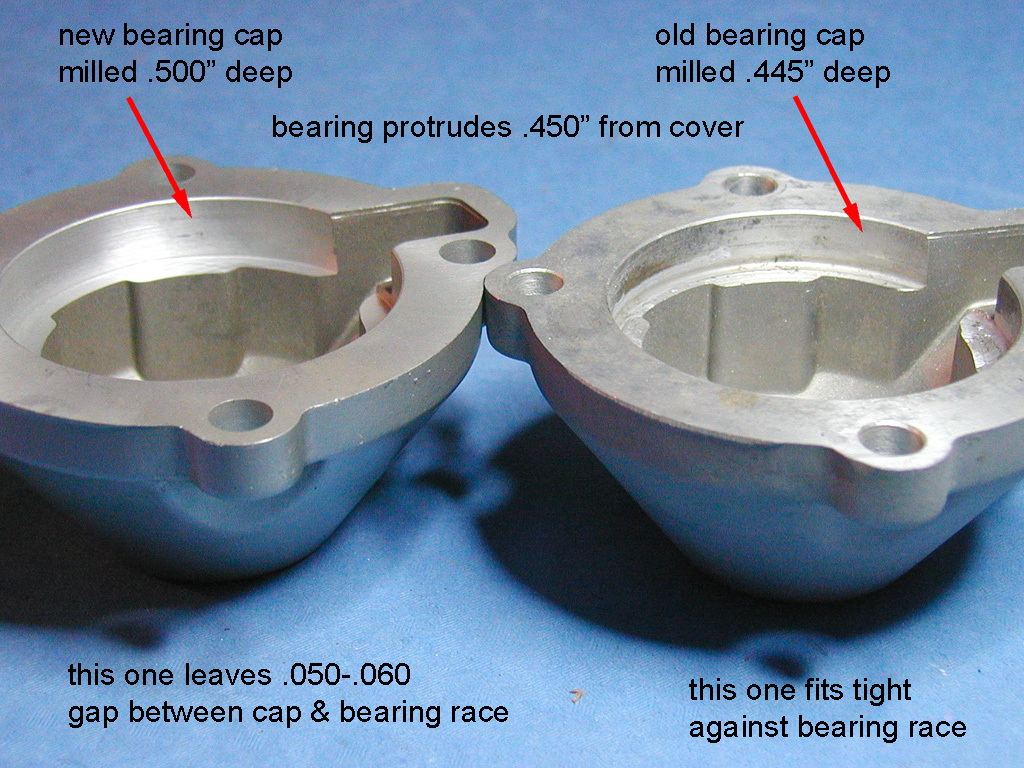

Well, it's been milled too deep, and would not clamp the bearing tight to the rear cover, but left it loose with fore/aft end play. NOT what it's supposed to do!

So I ended up cleaning & deburring the original anyway, and using it.  It did clamp the bearing tight.
